atacado Round Self-lubricating JOST Oilless Brass Flanged Guide Bearing Bushing

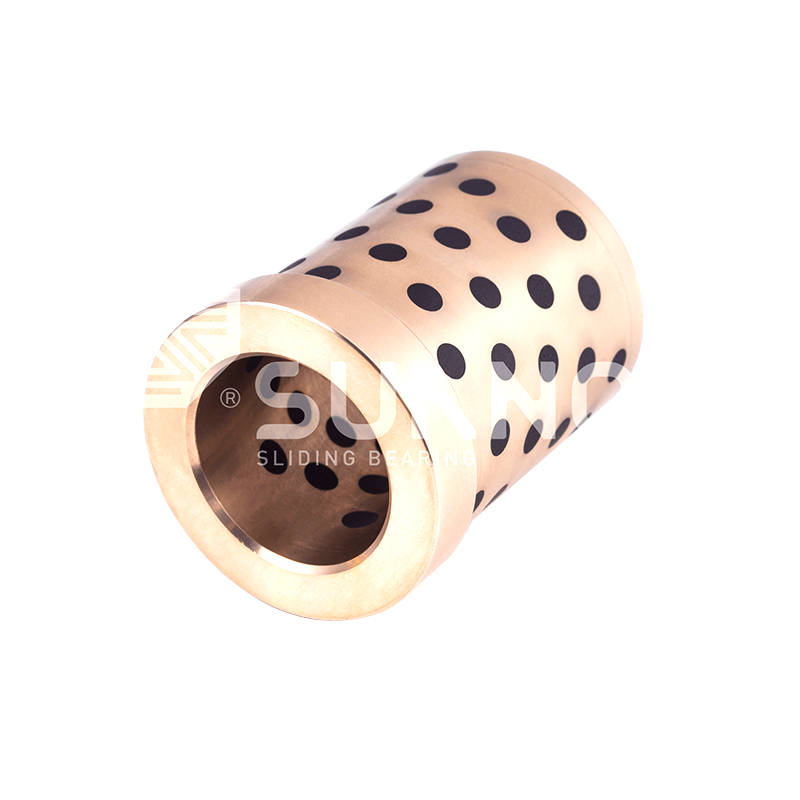

Round Self-lubricating JOST Oilless Brass Flanged Guide Bearing Bushing

Descrição do produto:

Round Self-lubricating JOST Oilless Brass Flanged Guide Bearing Bushing is a high-performance maintenance-free bearing bushing. Made of high-quality brass, it is durable and corrosion-resistant. The unique self-lubricating design does not require additional lubricating oil, effectively reducing maintenance costs and environmental pollution. The flange structure is easy to install and fix, ensuring stable and reliable operation. It is suitable for a variety of industrial equipment, such as mechanical transmission, automation equipment, etc., and can significantly reduce the friction coefficient.

Descrição do produto

Standard No. d L t D Tolerance D1 d H7
e7 k6
JOST-9x12 9 12 3 14 -0.032
-0.050
+0.012
+0.001
16 9 +0.015
0
JOST-9x17 17
JOST-9x22 22
JOST-9x27 27
10
JOST-9x36 36
JOST-10x12 10 12
JOST-10x17 17
JOST-10x22 22
JOST-10x27 27
JOST-10x36 36
JOST-12x17 12 17 6 18 23 12 +0.018
0
JOST-12x22 22
JOST-12x27 27
JOST-12x36 36
JOST-14x17 14 17 20 -0.040
-0.061
+0.015
+0.002
25 14
JOST-14x22 22
JOST-14x27 27
JOST-14x36 36
JOST-14x46 46
JOST-14x56 56
JOST-17x17 17 17 25
JOST-17x22 22
JOST-17x27 27
JOST-17x36 36
JOST-17x46 46
JOST-17x56 56
JOST-16x17 16 17 6 22 -0.040
-0.061
+0.015
+0.002
27 16 +0.018
0
JOST-16x22 22
JOST-16x27 27
JOST-16x36 36
JOST-16x46 46
JOST-16x56 56
JOST-18x17 18 17 26 31 18
JOST-18x22 22
JOST-18x27 27
JOST-18x36 36
JOST-18x46 46
JOST-18x56 56
JOST-18x66 66
JOST-20x17 20 17 20 +0.021
0
JOST-20x22 22
JOST-20x27 27
JOST-20x36 36
JOST-20x46 46
JOST-20x56 56
JOST-20x66 66
JOST-22x22 22 22 6 30 -0.040
-0.061
+0.015
+0.002
35 22 +0.021
0
JOST-22x27 27
JOST-22x36 36
JOST-22x46 46
JOST-22x56 56
JOST-22x66 66
JOST-22x76 76
JOST-22x86 86
JOST-24x17 24 17 24
JOST-24x22 22
JOST-24x27 27
JOST-24x36 36
JOST-24x46 46
JOST-24x56 56
JOST-24x66 66
JOST-24x76 76
JOST-24x86 86
JOST-30x27 30 27 42 -0.050
-0.075
+0.018
+0.002
47 30
JOST-30x36 36
JOST-30x46 46
JOST-30x56 56
JOST-30x66 66
JOST-30x76 76
JOST-30x86 86
JOST-30x96 96
JOST-30x116 116
JOST-32x27 32 27 32 +0.025
0
JOST-32x36 36
JOST-32x46 46
JOST-32x56 56
JOST-32x66 66
JOST-32x76 76
JOST-32x96 96
JOST-40x56 40 56 10 54 -0.060
-0.090
+0.021
+0.002
60 40 +0.025
0
JOST-40x66 66
JOST-40x76 76
JOST-40x86 86
JOST-40x96 96
JOST-40x116 116
JOST-40x136 136
JOST-40x156 156
JOST-42x56 42 56 42
JOST-42x66 66
JOST-42x76 76
JOST-42x86 86
JOST-42x96 96
JOST-42x116 16
JOST-42x136 136
JOST-42x156 156
JOST-50x76 50 76 66 72 50
JOST-50x86 86
JOST-50x96 96
JOST-50x116 16
JOST-50x136 136
JOST-50x156 156
JOST-50x196 196
JOST-60x96 60 96 20 80 86 +0.030
0
JOST-60x116 16
JOST-60x136 36
JOST-60x156 156
JOST-60x196 196

Introdução ao produto

JOST Series

Round Self-lubricating JOST Oilless Brass Flanged Guide Bearing Bushing

Round flange configuration with 360-degree graphite lubrication for rotary guidance applications requiring axial retention and maintenance-free operation.
Round Flange Self-Lubricating Brass Substrate 260°C Max
1.6 Flange OD Ratio
0.08 Friction Coefficient
200 N/mm² Static
Concentric Graphite Pattern Lubricant inserts arranged in concentric rings on both bore and flange face. Provides uniform lubrication at any rotational position.
360-Degree Flange Continuous circular flange with uniform thickness. No orientation required during installation. Consistent clamping surface.
Axial Load Capable Flange face supports thrust loads up to 40 N/mm². Graphite inserts on flange provide lubrication for axial contact.
Rotary Motion Optimized Specifically designed for rotary indexing tables, turntables, and rotating actuator applications where flange position varies.

Material & Performance Specifications

Base Alloy CuSn7Zn4Pb7 High strength brass
Hardness 140-190 HB Brinell scale
Tensile Strength 480 N/mm² Minimum
Elongation 18% Minimum
Lubricant Grade EG-98 Graphite High purity
Lubricant Coverage 22% Bore / 16% Flange Surface area
Thermal Conductivity 50 W/m·K At 20°C
Coefficient Expansion 19 x 10⁻⁶ /K 20-260°C

Round Flanged Bushing Dimensions

Standard metric series with round flange profile
ID mm OD mm Flange OD Length L Flange T Weight
8 14 22 10, 15, 20 2.5 8g
10 16 26 12, 16, 20, 25 2.5 14g
12 20 32 15, 20, 25, 30 3.0 22g
15 24 38 20, 25, 30, 40 3.0 35g
18 28 44 25, 30, 40, 50 3.5 52g
20 32 50 30, 40, 50, 60 3.5 68g
25 38 60 40, 50, 60, 80 4.0 110g
30 45 70 50, 60, 80, 100 4.5 170g
40 58 90 60, 80, 100, 120 5.0 320g
50 70 110 80, 100, 120, 150 5.5 520g
Custom flange diameters and thicknesses available. Non-standard lengths up to 200mm can be manufactured.

Rotary Application Deployment

Rotary Indexing Tables Precision positioning tables requiring smooth rotary motion with axial retention.
Turntable Bearings Heavy duty turntables for assembly and testing equipment.
Rotary Actuators Pneumatic and hydraulic rotary actuator pivot points.
Packaging Turrets Rotary sealing and filling turret guide bearings.
Rotary Die Cutting Rotary die cutting and embossing equipment guides.
Positioning Stages Rotary positioning stages for inspection and processing.

Technical Inquiries

Flange face graphite coverage Flange face contains 8 to 14 graphite inserts arranged in a circular pattern. Coverage approximately 16% of flange surface area.
Flange OD tolerance Standard flange OD tolerance is ISO h11. For applications requiring closer fit, h9 tolerance available on request.
Can flange be used for sealing No. The flange face is not designed as a sealing surface. It provides axial location and limited thrust support only.
Maximum rotation speed Maximum continuous speed is 0.5 m/s surface speed. For higher speeds, consult PV rating and cooling requirements.
